Challenge: FAT32 does not store a time stamp for access dates, it only records the date. However many tools have or have in the past actually treated the zero time entry as a real time entry and adjusted it for time zones. Test your favorite tools such as , ftk imager, xways, axiom, encase, autopsy your choice but you must submit at least two and show if they are correctly handling FAT32 timestamps.
This is my first Sunday Funday submission! No expectations of winning a grand prize or anything but just wanting to throw my hat in the ring and explore FAT32. I’m also submitting late due to NCCDC and didn’t get around to testing a second tool, so I wouldn’t meet the requirements anyways.
Regardless, I learned quite a bit about FAT32 by doing this challenge: how it’s structured, its limitations, and how certain tools might misinterpret the zero time entry and adjust it with the local time zone.
I tried to make this post as detailed as I could. Mostly because a lot of it is somewhat new to me. I’ve previously explored JPEGs to manually recover location data, but that’s about the extent of my “low-level” manual carving experience. I’m doing a little more of that for this challenge just for fun :)
Testing System (Arch Linux (btw)):

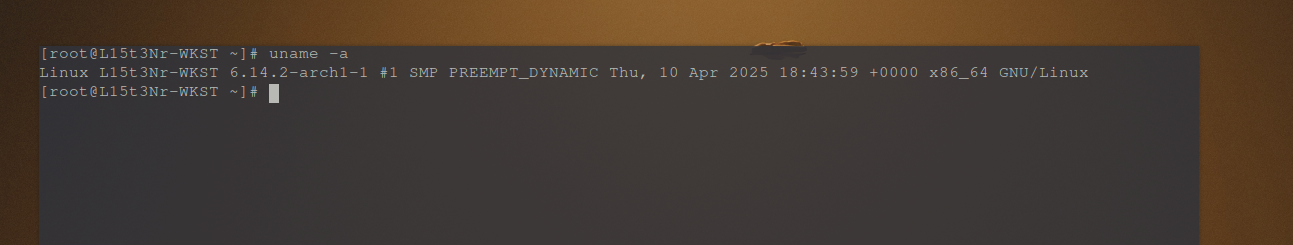

uname -a

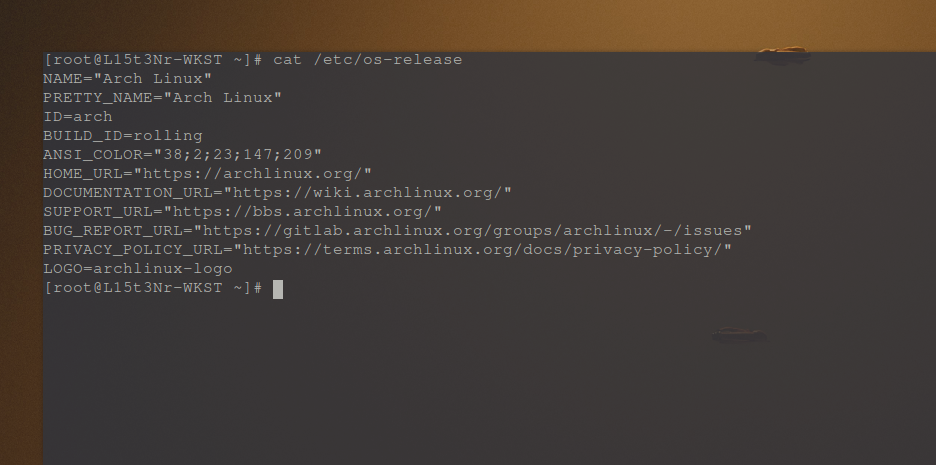

cat /etc/os-release

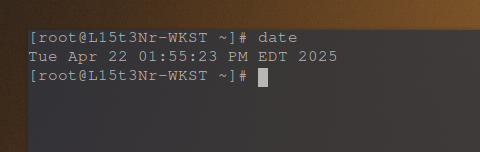

date
I created a small partition on my host with 20G of storage and set the type to EFI System:
20 gigs is a ton…and I regret this later…

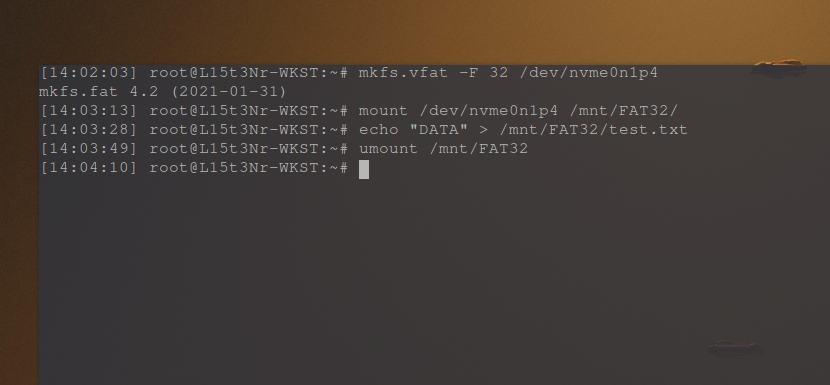

Next I formatted the partition with FAT32, mounted the partition to /mnt/FAT32, created a file (test.txt) with some “DATA”, and then un-mounted the partition.

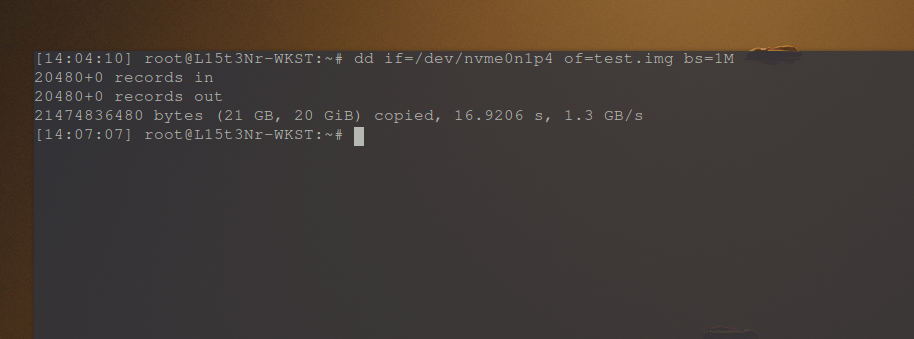

Then I took a logical bit-by-bit copy of the partition using the dd command:
The result is a test.img file containing the raw data from the FAT32 formatted partition.
Baseline - RAW Timestamp Data
To get a baseline I figured it would be best to see what timestamp information FAT32 has stored for test.txt before testing tools. I ended up doing this after testing the first tool (istat). So my command line timestamps aren’t aligned with the order I did things.
This is probably more than I need to do, but I enjoy digging in to documentation on new things.
First I had to find the directory entry for the test.txt file to locate the timestamp information.

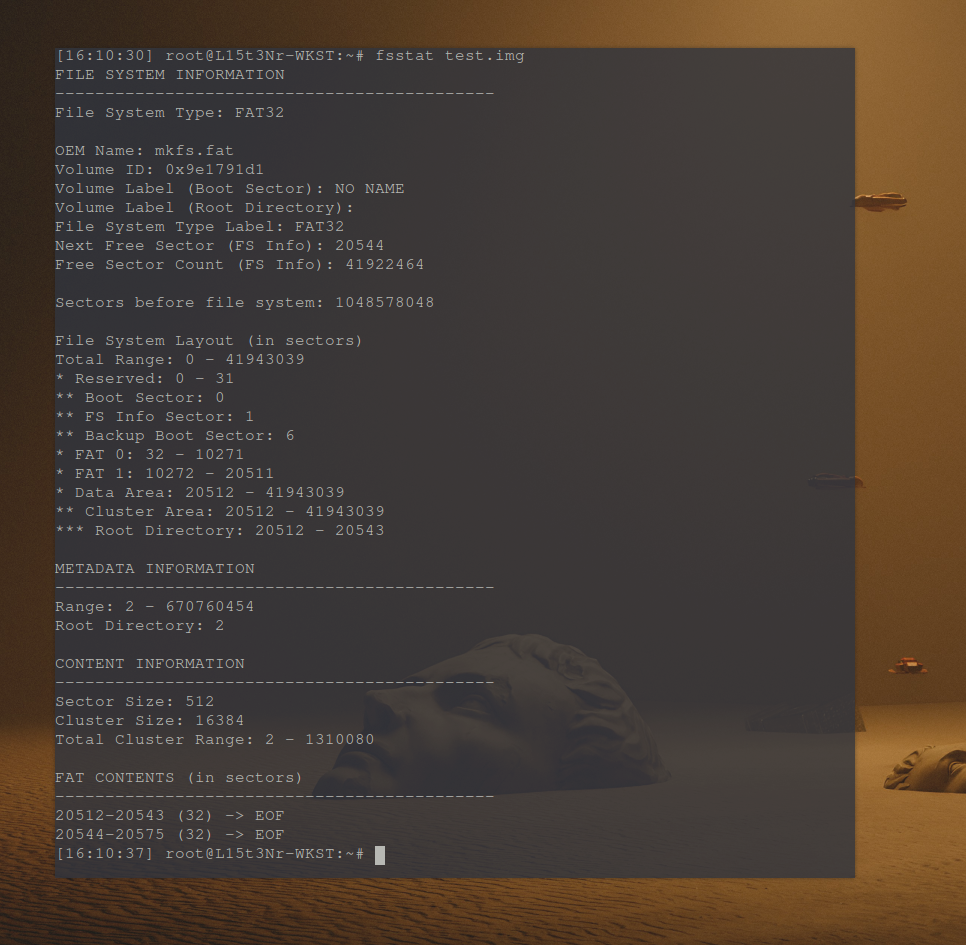

I’m using fsstat from The Sleuth Kit to get file system information from test.img.
The fsstat output below shows some key information for locating the entry.
| Label | Value |
|---|---|
| Cluster Size | 16384 (32 sectors per cluster x 512 bytes) |
| Sector Size | 512 bytes |
| Root Directory Cluster | 2 |
| Root Directory Sector Range | 20512 - 20543 |

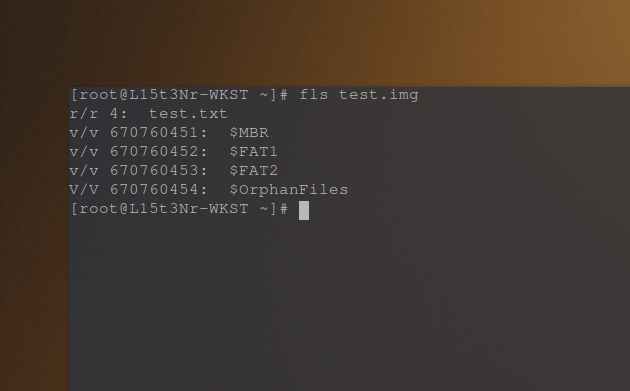

I’ve also used fls to list file and directory names in the disk image.
test.txt is the 4th directory entry.
This information can be used to find the offset for the test.txt directory entry and then the timestamps.
Cluster 2 starts at offset 20512. Multiplying this offset by 512 will get the offset of the root directory.
1
2
echo $((20512 * 512))
10502144

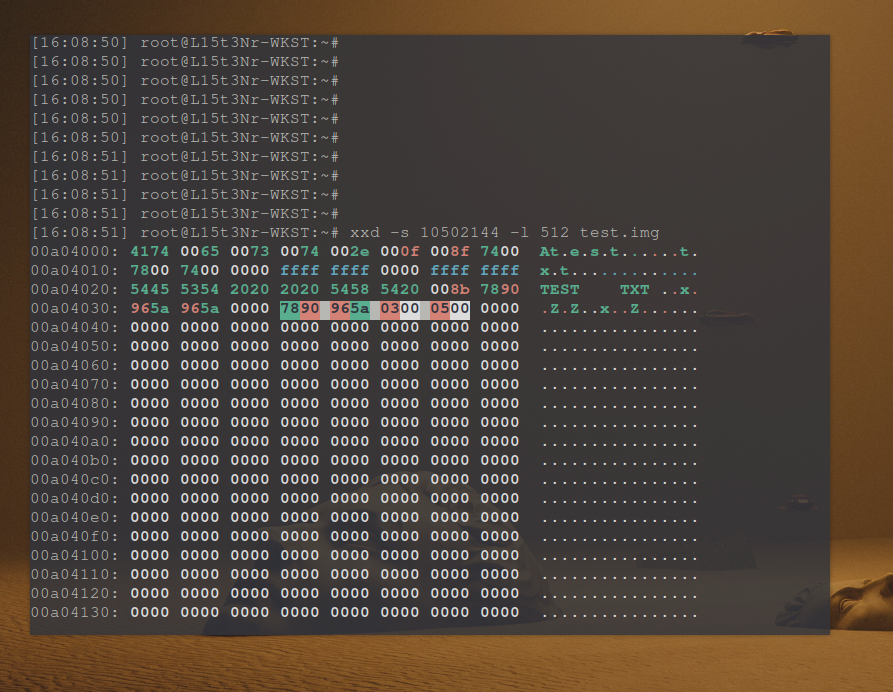

The offset I need to check is 10502144and the 4th directory entry appears to be at the top, which is my test.txt file.
To make sense of the data I followed this Directory Structure documentation.
Each Directory Entry Structure is 32 bytes long.
The first 32 bytes is a Long File Name Entry Structure:
1
4174 0065 0073 0074 002e 000f 008f 7400 7800 7400 0000 ffff ffff 0000 ffff ffff
| Offset | Size | Field | Hex Value | Info |
|---|---|---|---|---|
| 0x00 | 1 byte | Sequence Number | 41 | A - Long File Name Sequence Number (LFN) |
| 0x01 | 10 bytes | Name Part 1 | 74 002e 000f 00 | test. - 0x00 are null values |
| 0x0B | 1 byte | Attributes | 0f | LFN |
| 0x0C | 1 byte | Type | 00 | |
| 0x0D | 1 byte | Checksum of Short File Name | 8f | 143 - Checksum value (I don’t understand this) |
| 0x0E | 12 bytes | Name Part 2 | 7400 7800 7400 0000 ffff ffff | txt - the file extension |
| 0x1A | 2 bytes | First cluster | 0000 ffff | 0 |
| 0x1C | 4 bytes | Name Part 3 | ffff | Padding |
Basically, this first 32 byte entry is for the filename.
The next 32 bytes is a Standard 8.3 Directory Entry Structure (Time and Date):
1
5445 5354 2020 2020 5458 5420 008b 7890 965a 965a 0000 7890 965a 0300 0500 0000
| Offset | Size | Field | Hex Value | Value |
|---|---|---|---|---|
| 0x00 | 11 bytes | Filename (8.3 Format) | 5445 5354 2020 2020 5458 54 | TEST TXT |
| 0x0B | 1 byte | Attributes | 20 | Archive Bit Set |
| 0x0C | 1 byte | Reserved | 00 | Always Zero |
| 0x0D | 1 byte | Creation Time Tenths | 8b | 139 - Milliseconds |
| 0x0E | 2 bytes | Creation Time | 7890->9078 (Little Endian) | 10010->18 000011->3 11000->24*2=48 18:03:48 |
| 0x10 | 2 bytes | Creation Date | 965a->5a96 (Little Endian) | 0101101->1980+45=2025 0100->4 10110->22 4-22-2025 |
| 0x12 | 2 bytes | Last Access Date | 965a->5a96 (Little Endian) | 0101101->1980+45=2025 0100->4 10110->22 4-22-2024 |
| 0x14 | 2 bytes | High 16 Bits of Cluster | 0000 | - |
| 0x16 | 2 bytes | Last Modified Time | 7890->9078 (Little Endian) | 10010->18 000011->3 11000->24*2=48 18:03:48 |
| 0x18 | 2 bytes | Last Modified Date | 965a->5a96 (Little Endian) | 0101101->1980+45=2025 0100->4 10110->22 4-22-2025 |
| 0x1A | 2 bytes | Low 16 Bits of Cluster | 0300 | - |
| 0x1C | 4 bytes | File Size | 0500 0000 | 1280 bytes |
The time and date information is in this second entry and I was able to convert the bytes to dates and timestamps from the documentation.
| Field | Value |
|---|---|
| Creation Time | 18:03:48 |
| Creation Date | 4-22-2025 |
| Last Access Date | 4-22-2025 |
| Last Modified Time | 18:03:48 |
| Last Modified Date | 4-22-2025 |
FAT32 uses localtime for its timestamps, however, my system clock is set to UTC. So while my localtime is actually 14:03:48 EDT at the time I made the test.txt file, FAT32 used my system clock and the timestamps are UTC there.
Now I know what FAT32 recorded for time and date and I can compare it to the tools that I’m going to test.
Tool Test 1 - istat (TheSleuthKit)
The first tool I tested was istat from the The Sleuth Kit.
You might notice the time is now 14:16:06 - I actually did this part before digging in to FAT32 manually.

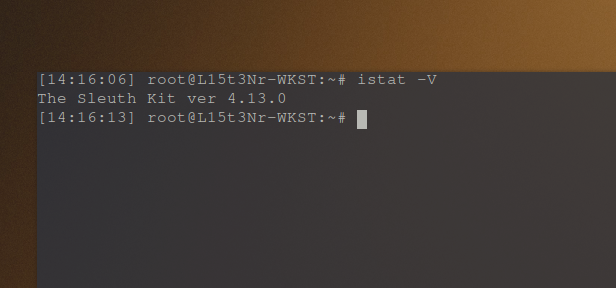

The Sleuth Kit version is 4.13.0
I used the fls tool from The Sleuth Kit to get the test file’s inode number. However, I learned that FAT32 does not have an “inode table”, but has “directory entries” in a directory entry table (structure). The number it identified for my test.txt file was 4.

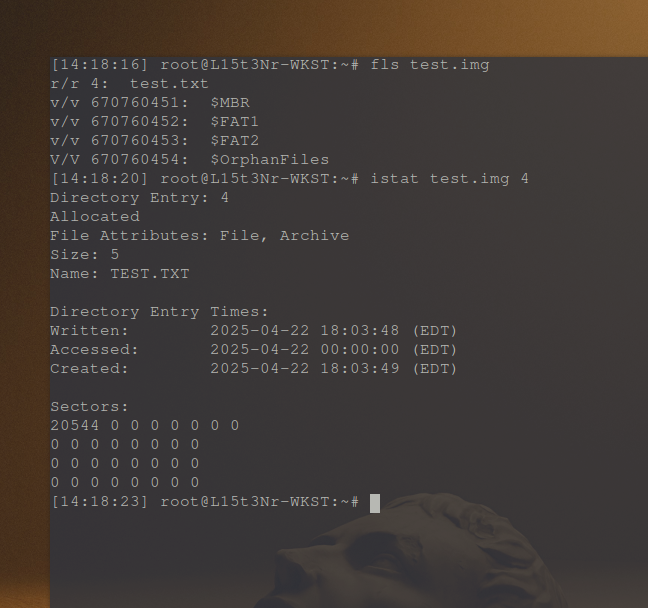

Just below the fls output is the istat command output. istat uses the Directory Entry number (4) to check the 4th directory entry.
The output from istat appears to accurately interpret the Accessed zero time entry.
If it had adjusted for the time zone, i’d have expected to see the Accessed Timestamp to be 20:00:00 for the previous day since I am UTC-4.
